Tên gọi

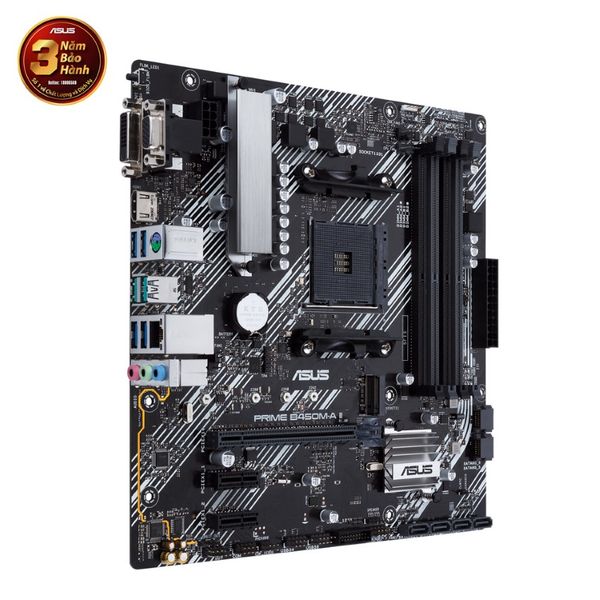

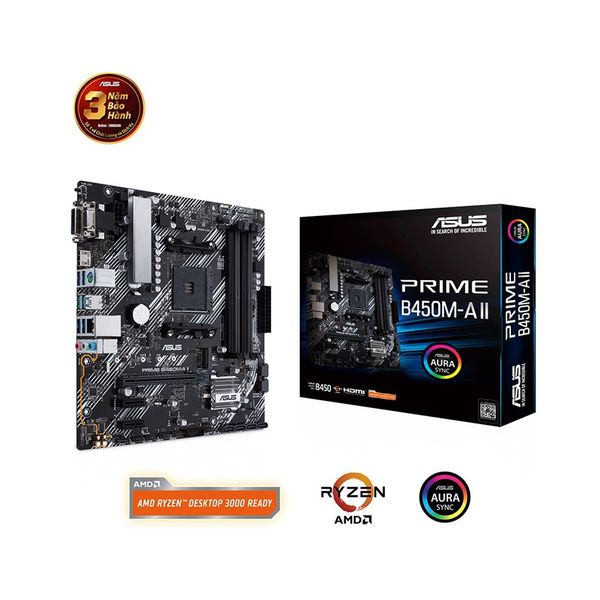

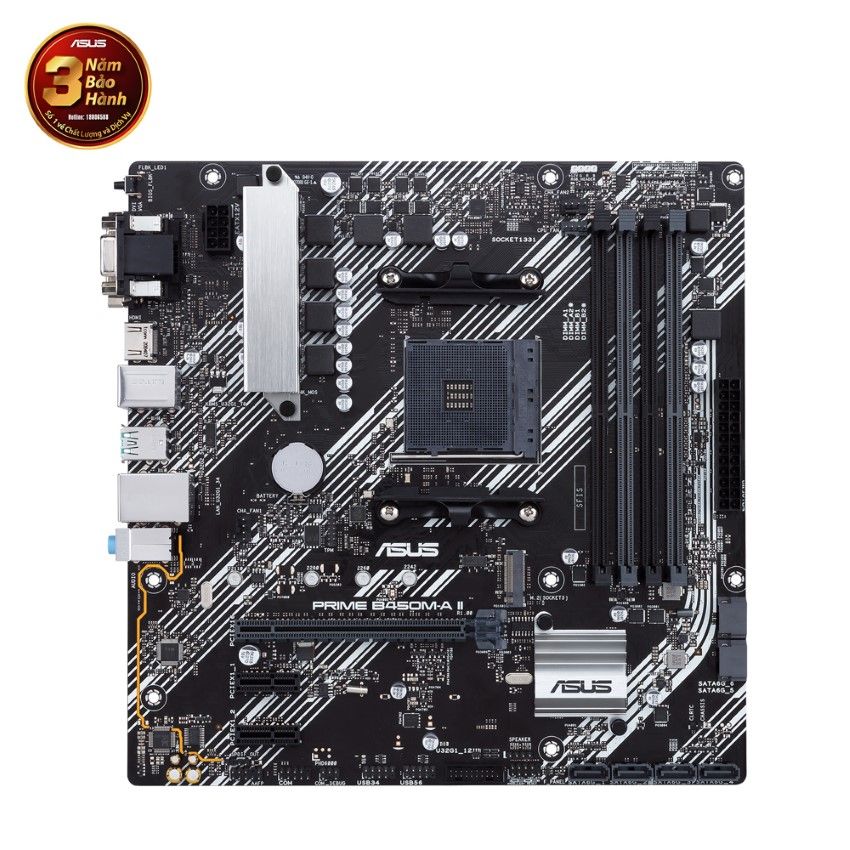

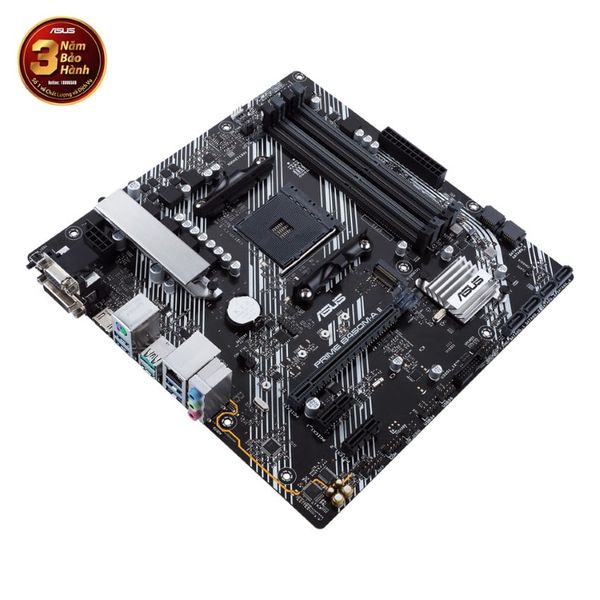

ASUS PRIME B450M-A II
CPU hỗ trợ
AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors *
Chipset / Socket
AMD B450
Bộ nhớ (RAM)
4 x DIMM, Max. 64GB, DDR4 3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Mspan style="font-style: italic"ory
Dual Channel Mspan style="font-style: italic"ory Architecture
ECC Mspan style="font-style: italic"ory (ECC mode) support varies by CPU.Công nghệ đa GPU
AMD 2-Way CrossFireX Technology
Khe cắm mở rộng
AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors
1 x PCIe 3.0/2.0 x16 (x16 mode)
AMD Ryzen™ with Radeon™ Vega Graphics Processor
1 x PCIe 3.0/2.0 x16 (x8 mode) *1
AMD B450 chipset
2 x PCIe 2.0 x1LAN / Wireless
Realtek® RTL8111H
Âm thanh
Realtek® ALC887 8-Channel High Definition Audio CODEC

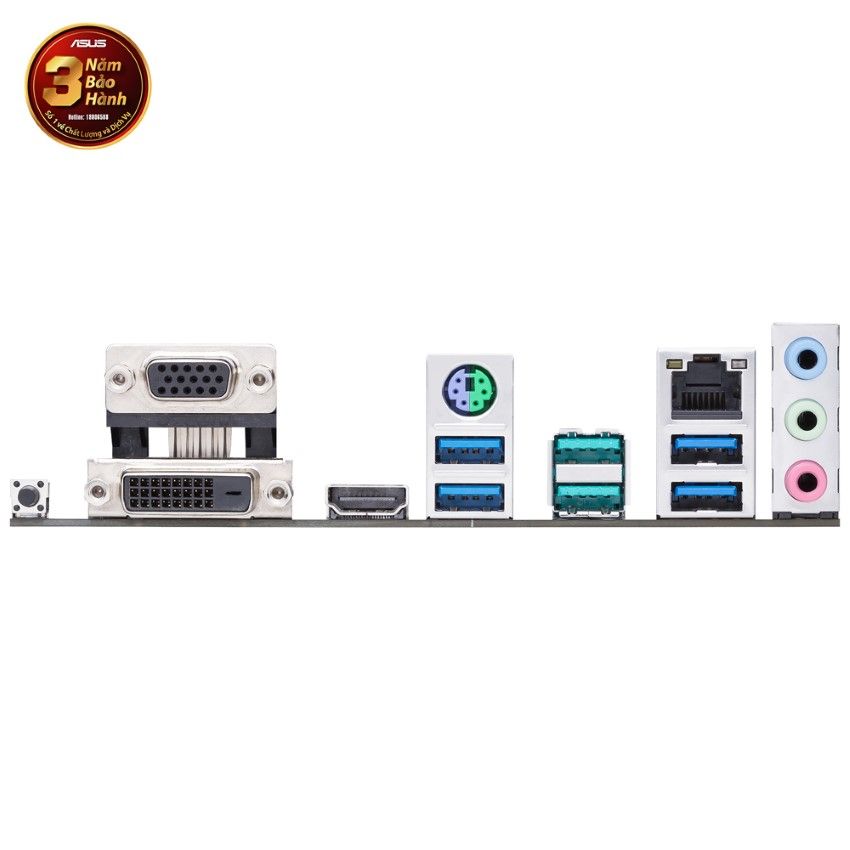

Cổng kết nối (Internal)
1 x CPU Fan connector(s) (1 x 4 -pin)
2 x Chassis Fan connector(s) (2 x 4 -pin)
1 x USB 3.2 Gen 1(up to 5Gbps)
